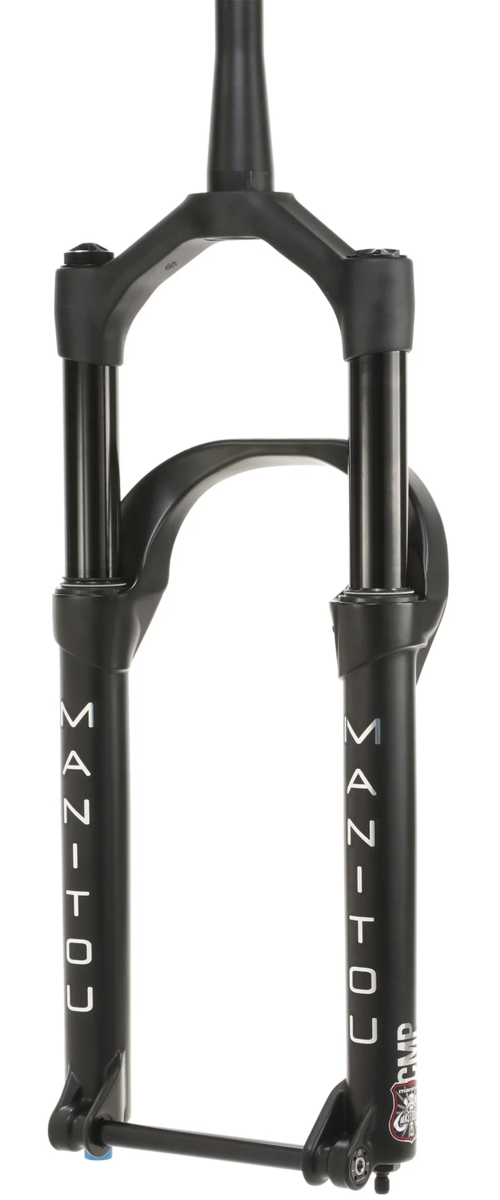

Manitou Mastodon Comp Fatbike 26/27.5-inch Fork

Manitou Mastodon Comp Fatbike 26/27.5-inch Fork
  • Color: Black
$649.99
Color: Black
Travel: 100mm
Wheel Size: 27.5-inch
Axle: 150 x 15mm
Please select options Unavailable

Details

The Mastodon is not a modified or repurposed trail fork compatible with large tire dimensions, but rather it is a fatbike fork made to improve any ride regardless of how low or high the numbers on the thermometer read. To create such a dynamic fork required all-environment and all-temperature performance testing that took the R+D staff to some of the most inhospitable testing environments in the world. To earn its place within the Manitou family, the Mastodon passed performance and reliability testing in both real world and lab scenarios at temperatures as low as -40 degrees. The Dorado Air, seals, lubricants, and all other internals are proven for all-weather performance, no matter how extreme on either end of the temperature spectrum.

The Mastodon is available out of the box in 120mm and 100mm configurations. All options are internally adjustable by the rider in 10mm increments with COMP being internally adjustable from 80mm to 140mm.

- 80mm-140mm of travel
- Expert Air spring systems with balancing valve that equalizes the positive and negative air chambers during the air fill process for a consistent spring rate
- Incremental Volume Adjust (IVA) modifies the volume in the positive air chamber with self contained spacers dictating the position of the IVA piston
- Front brake routing allows the user to use the same length brake hose from their rigid fork, or other suspension fork
- E-Bike compatible with a max gross weight up to 150kg

Part Numbers

Option MPN Store SKU
150 x 15mm / Black / 100mm / 27.5-inch 191-40026-A005 MAN803877363
